METALLIZED POLYSTER CAPACITORS

类型:

CL21

产品特点:

Good reputation in use with filtering,DC blocking,coupling,energy saving lamps and so in for general communications equipment.
This type is self-healing flat style capacitor,winded with Metallized Ployester Flim as dielectric,epoxy resin dipped coating and with radial CP wire.

技术特性:

Capacitance Range	0.01-4.7uF
Capacitance Tolerance	J(±5%) K(±10%) M(±20%)
Dissipation Factor	0.1% at 1KHZ and 25℃
Operating Temperature Range	-40℃~105℃
Climatic Category	40/100/21
Rated Voltage	275VAC
Testing Voltage	2200VDC 时间5S
Insulation Resistance	C≤ 0.33uF >32000MΩ C > 0.33uF >15000MΩ

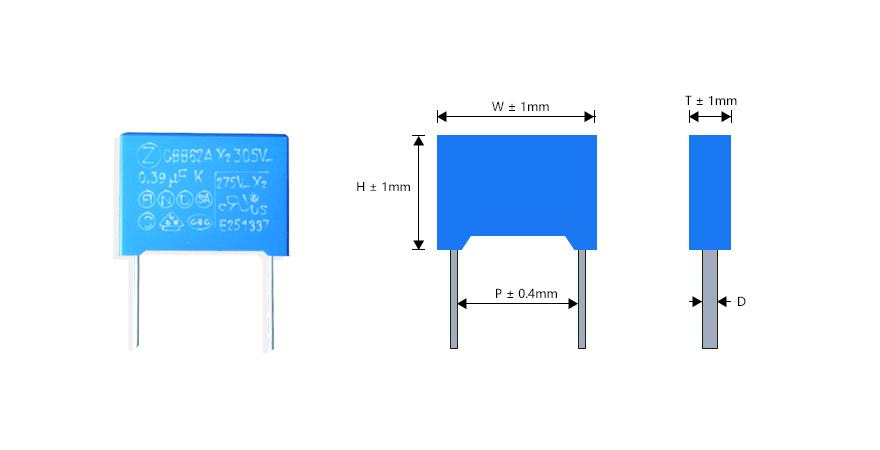

尺寸:(单位 mm)

CODE	VDC MFD	2A(100VDC)					2E(250VDC)					2G(400VDC)					2J(630VDC)
CODE	VDC MFD	W	H	T	P	dΦ	W	H	T	P	dΦ	W	H	T	P	dΦ	W	H	T	P	dΦ
103	0.01	12	10	5.5	10	0.6	12	10	5.5	10	0.6	12	10	5.5	10	0.6	12	10	5.5	10	0.6
153	0.015	12	10	5.5	10	0.6	12	10	5.5	10	0.6	12	10	5.5	10	0.6	12	10	6	10	0.6
223	0.022	12	10	5.5	10	0.6	12	10	5.5	10	0.6	12	10	5.5	10	0.6	12	11	6.5	10	0.6
333	0.033	12	10	5.5	10	0.6	12	10	5.5	10	0.6	12	10	5.5	10	0.6	18	11	6	15	0.8
473	0.047	12	10	5.5	10	0.6	12	10	5.5	10	0.6	12	10	5.5	10	0.6	18	12	7	15	0.8
563	0.056	12	10	5.5	10	0.6	12	10	5.5	10	0.6	12	10	5.5	10	0.6	18	13	8	15	0.8
683	0.068	12	10	5.5	10	0.6	12	10	5.5	10	0.6	12	11	6.5	10	0.6	18	13	8	15	0.8
104	0.1	12	10	5.5	10	0.6	12	10	5.5	10	0.6	18	11	7	15	0.8	18	15	9.5	15	0.8
154	0.15	12	10.5	7	10	0.6	12	10.5	7	10	0.6	18	13	8	15	0.8	23	16	9	20	0.8
224	0.22	12	11	7.5	10	0.6	18	11	7	11	0.8	18	14	9.5	15	0.8	23	18	11	20	0.8
334	0.33	12	11	8	15	0.8	18	12	7	12	0.8	23	16	8.5	20	0.8	31	17.5	10.5	27	0.8
474	0.47	18	11	6.5	15	0.8	18	13	8	13	0.8	23	18	10	20	0.8	31	21.5	14	27	0.8
564	0.56	18	11.5	7.5	15	0.8	18	14	9	14	0.8	23	19	12	20	0.8
684	0.68	18	12	8	15	0.8	18	15	10	15	0.8	23	20	13	20	0.8
105	1	23	15	9	20	0.8	23	17	9.5	17	0.8	31	20	12	27	0.8
155	1.5	23	17	9	20	0.8	23	18	11	18	0.8
225	2.2	23	18	10	20	0.8	31	20	12	20	0.8
335	3.3	31	22	13	27	0.8	31	22	14	22	0.8
475	4.7	31	23	13	27	0.8	31	24.5	15	24	0.8
685	6.8	31	24	15	27	0.8
106	10	31	26	21	27	0.8
