METALLIZED POLYPROPYLENE CAPACITORS

类型:

CBB22

产品特点:

issipation factor is normaly low and is stable against high frequency and change of temperature. Recommended for high-frequenly circuit. This type is self-healing flat style capacitor,winded with metalized polypropylene Film as dielectric,epoxy resin dipped coating and with radial CP wire.

技术特性:

Capacitance Range	0.01-3.3uF
Capacitance Tolerance	J(±5%) K(±10%) M(±20%)
Dissipation Factor	0.1% at 1KHZ and 25℃
Operating Temperature Range	-40℃~100℃
Climatic Category	40/100/21
Rated Voltage	250VDC,400VDC,630VDC
Testing Voltage	1200VDC for 3-5sec
Insulation Resistance	C≤ 0.33uF ≥30000MΩ C > 0.33uF ≥10000MΩ

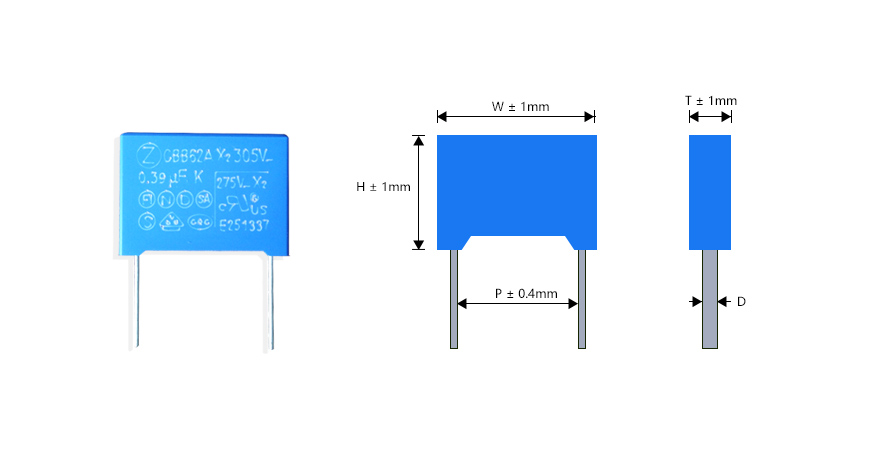

尺寸:(单位 mm)

CODE	VDC MFD	250VDC					400VDC					630VDC
CODE	VDC MFD	W	H	T	P	dΦ	W	H	T	P	dΦ	W	H	T	P	dΦ
103	0.01	13	10	6	10	0.6	13	10	6	10	0.6	13	10	6	10	0.6
153	0.015	13	10	6	10	0.6	13	10	6	10	0.6	13	10.5	6	10	0.6
223	0.022	13	10	6	10	0.6	13	10	6	10	0.6	13	11.5	6	10	0.6
333	0.033	13	10	6	10	0.6	13	10.5	7	10	0.6	18	12	8	15	0.8
473	0.047	13	10	6	10	0.6	13	10.5	7	10	0.6	18	13.5	9	15	0.8
563	0.056	13	10	6	10	0.6	13	12	8	10	0.6	18	14	9.5	15	0.8
683	0.068	13	10	6	10	0.6	18	13	9	15	0.8	18	15.5	10.5	15	0.8
104	0.1	13	11	7	10	0.6	18	14	9	15	0.8	23	17	10	20	0.8
154	0.15	13	13	9.5	10	0.6	18	18	11	15	0.8	23	18	11	20	0.8
224	0.22	18	13	8.5	15	0.8	18	19	12	20	0.8	31	20	12	27	0.8
334	0.33	18	14	9.5	15	0.8	23	19	11	27	0.8	31	23	14	27	0.8
474	0.47	23	15	8.5	20	0.8	31	18	11	27	0.8	31	26	17	27	0.8
564	0.56	23	16	10	20	0.8	31	20	12	27	0.8
684	0.68	23	18	11	20	0.8	31	21	12	27	0.8
105	1	23	19	12	20	0.8	31	23	15	27	0.8
155	1.5	23	23	16	20	0.8
225	2.2	31	24	13	27	0.8
335	3.3	31	25	14	27	0.8
