heat-resistant and wet-resistant series ＞ CBB62 X2 THB

CBB62 X2 THB

产品介绍英文

类型:

CBB62 X2

产品特点:

text

技术特性:

Capacitance	0.047-2.2µF
Voltage[VAC]	275-330
Lead Spacing[mm]	10-27.5
Work Temperature[℃]	-40~100
Criteria	IEC 60384-14/CQC 60384-14/UL 60384-14/VDE 60384-14

TEST CONDITIONS ▽
Temperature℃	85±2
Humidity %	85±2
Time h	1000
Voltage VAC	250

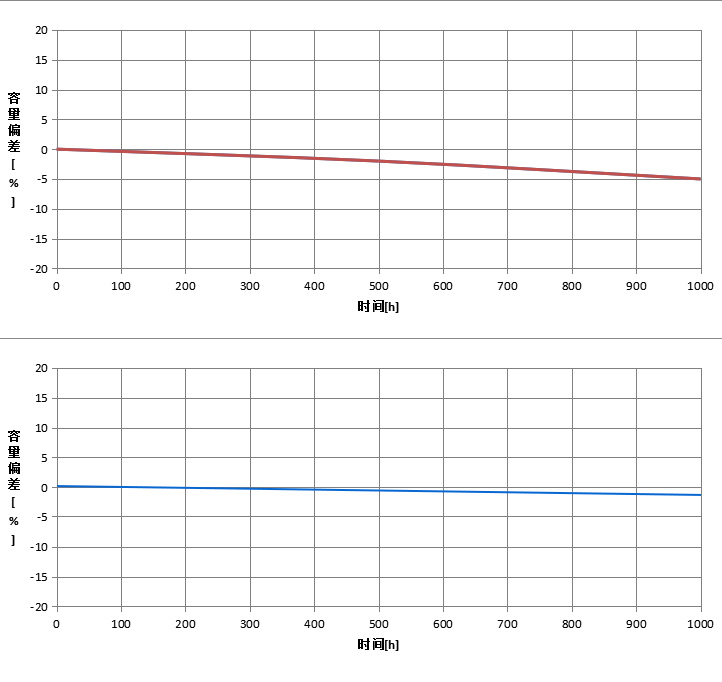

测试结果 ▽
?Δ?C %	≤5%
Δ tanδ	≤3•10-3（10kHz）

Product Specification.pdf

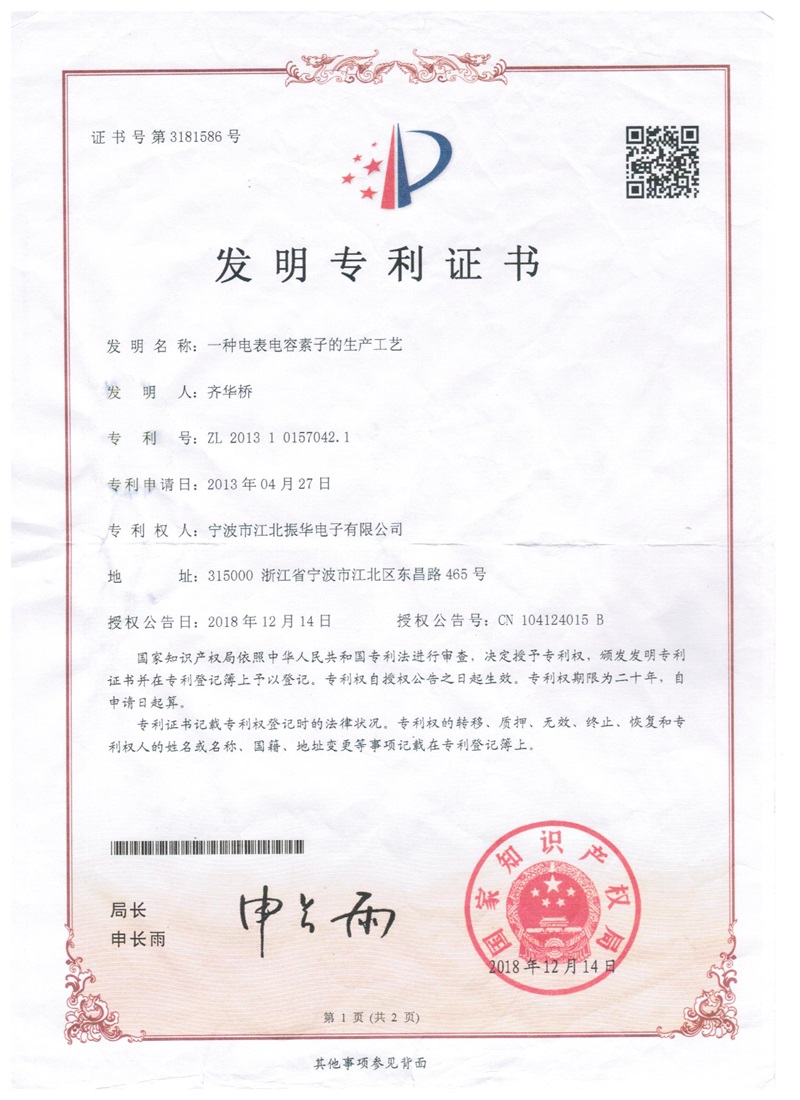

PATENT FOR INVENTION:A production process of capacitor for electric meter

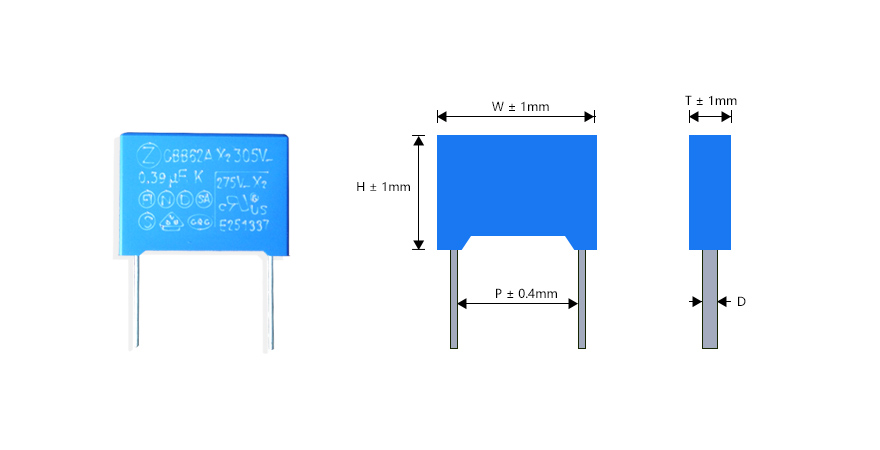

尺寸:(单位 mm)

text
